DIY Power Supply (August 25, 2019)

Specification.
Input voltage: AC 100V-110V
Output voltage/current: DC 18V, 0.3A (2 circuit)*1
Transformer:TOYOZUMI HTW-1803 (10.8VA)

*1:translated into 100V AC to 18V DC with TOYOZUMI's trans and regulator of JRC's NJM 317.

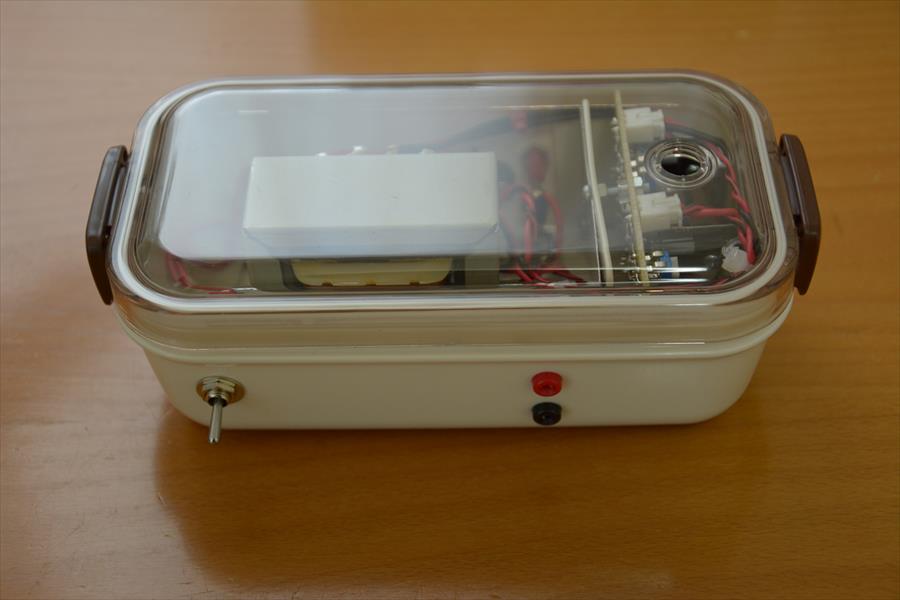

Front view.(Circuit boards in AEON's Top value series lunch box)

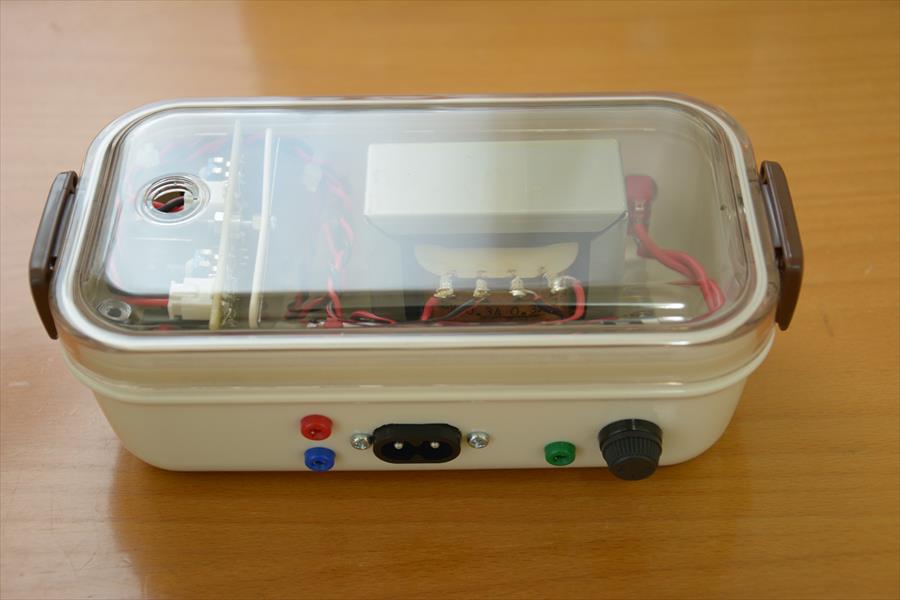

Back view.

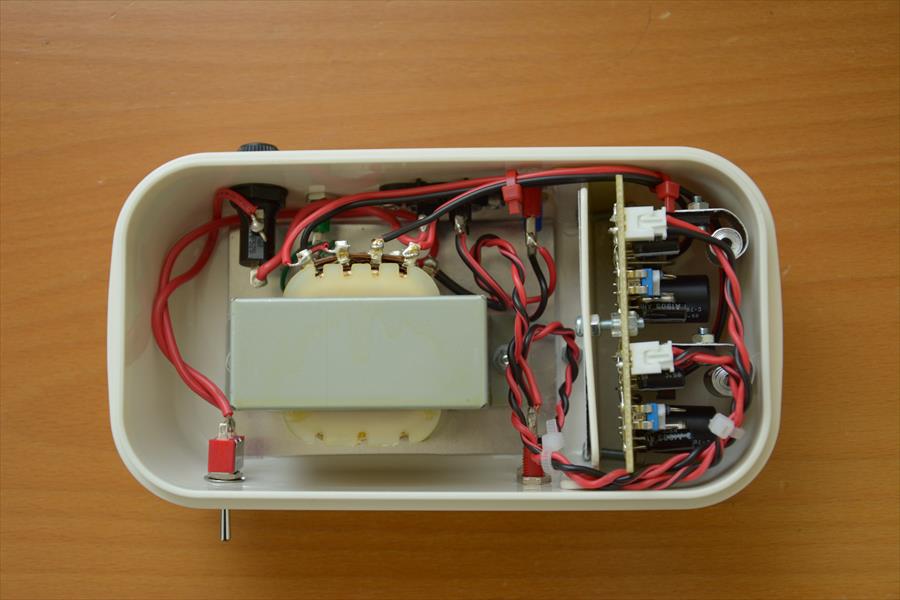

Over view.(top cover removed)

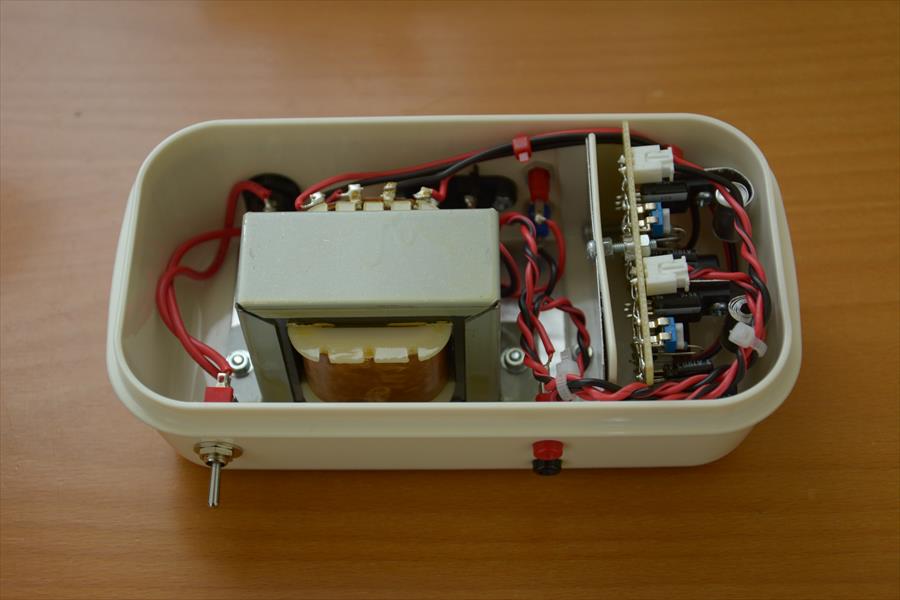

Front view.(top cover removed)
Power switch, DC output terminal(1st).

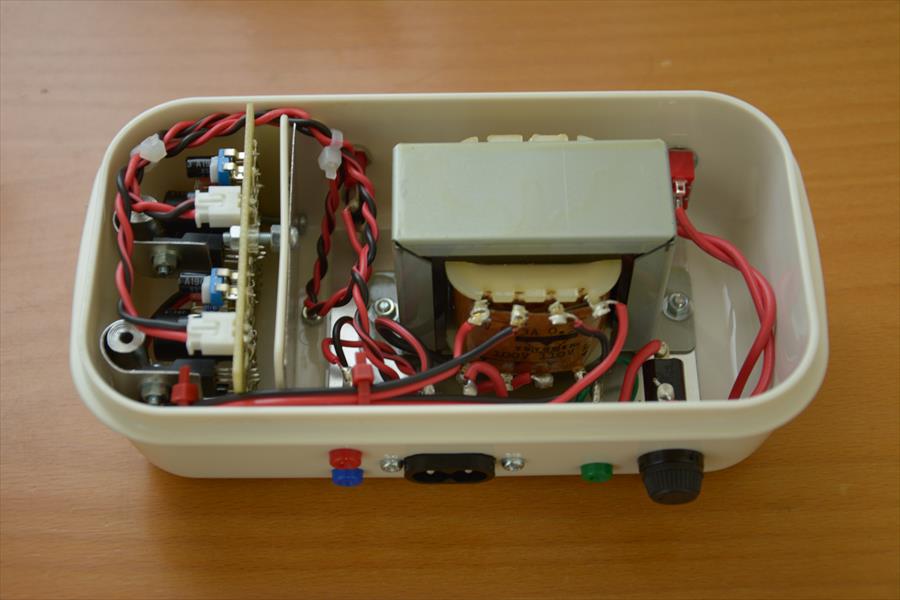

Back view.(top cover removed)
DC output terminal(2nd), AC Input terminal, earth terminal and Fuse.

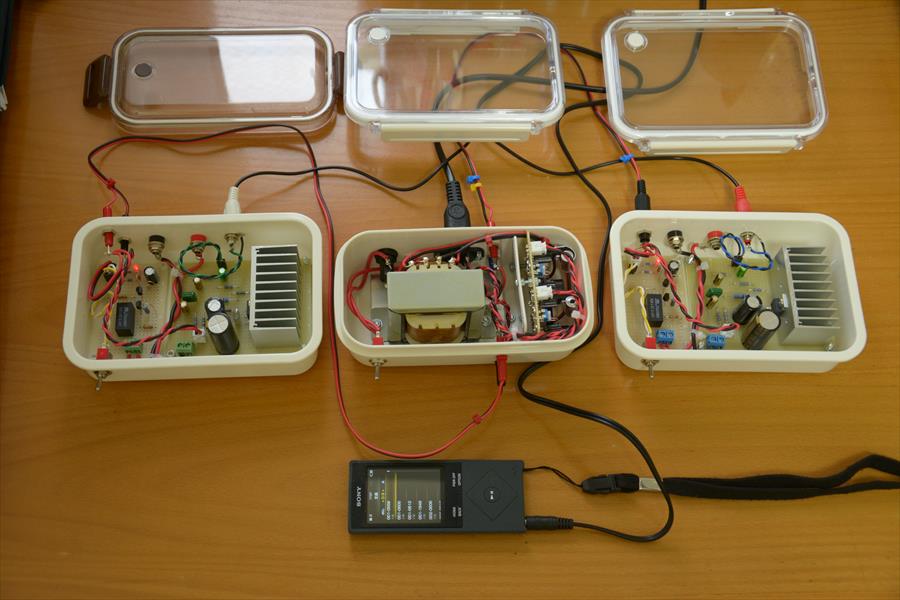

Connected to DIY Single power amplifire.

If you interested in the DIY Single power amplifire, refer to 'DIY Twin Single Power Amp'.
